Crushing - Use and Maintenance Manual
1、 Overview:

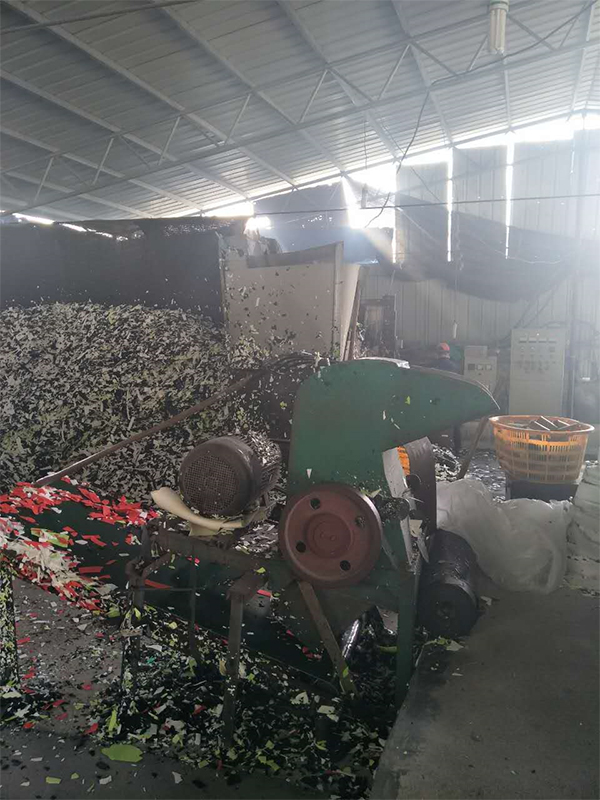

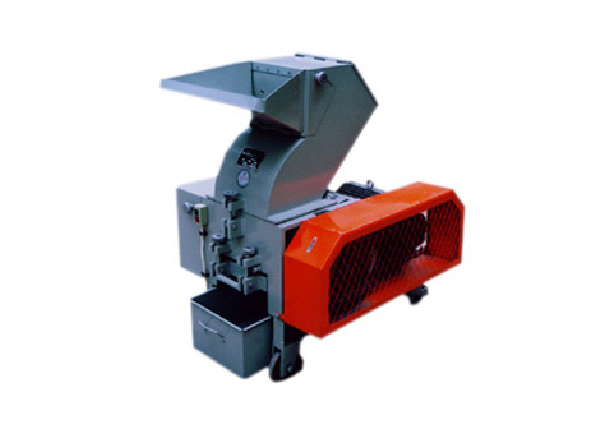

Our company produces plastic crushers in various varieties and specifications. The whole machine is designed with a reasonable and unique structure, precise processing, low noise, and flexible and convenient operation. Customers can choose according to their needs, making it an ideal crushing equipment for the plastic industry. This machine is suitable for processing and crushing various plastics, especially for polyethylene, polyvinyl chloride, polypropylene, ABS, TPR, EVA, PU, PBS, polyamide (nylon), injection gates, miscellaneous plastics, and waste materials.
2、 Various technical performance and parameters
Specification 220 crusher 300 crusher 350 crusher 400-A crusher 400-B crusher
Spindle speed 800r/min 800r/min 800r/min 800r/min 800r/min
Work frequency 3.6 * 103 times/minute 9.6 * 103 times/minute 4 * 103 times/minute 9.6 * 103 times/minute 1.44 * 104 times/minute
Moving tools 50 * 220 * 2 pieces 80 * 150 * 6 pieces 50 * 350 * 3 pieces 90 * 200 * 6 pieces 90 * 133 * 9 pieces
Fixed cutting tools 65 * 220 * 2 x 800 * 300 * 2 x 65 * 350 * 2 x 900 * 400 * 2 x 800 * 400 * 2 x
Tool hole spacing 70* Φ 14 dynamic 80 * 40 * 2 holes
Fixed 75 * 40 * 4 holes 70* Φ 14 dynamic 65 * 45 * 2 holes
Fixed 75 * 40 * 2 holes, dynamic 65 * 45 * 2 holes
Fixed 75 * 40 * 2 holes
Mesh screen aperture Φ 5~ Φ twenty-five Φ 5~ Φ twenty-five Φ 5~ Φ twenty-five Φ 5~ Φ twenty-five Φ 5~ Φ twenty-five
Crushing capacity 20~60kg/h 75~150kg/h 40~100kg/h 100~200kg/h 120~250kg/h
Motor power 7.5kw 7.5kw 11kw 11kw 11kw
Total weight of the body 400kg 650kg 600kg 850kg 850kg
Appearance dimensions (mm): 680 * 680 * 1050 * 850 * 1120 900 * 950 * 1100 1360 * 1000 * 1360 * 1000 * 1360 * 1000 * 1360
3、 Mechanical structure design
1. The box body is composed of cast steel components to form a sandwich type, which has good heat dissipation effect and low noise.
2. The screen mesh system is semi cylindrical, with smooth discharge and no accumulation of material. It is easy to replace the screen mesh. For models 320-350, only open one upper and one lower nozzle plate from the feeding port to fix the moving knife; The 300-400 model only needs to rotate a single handle ball to lower the bracket, without the need to disassemble the casing, which is fast and convenient.
3. The tool material is made of T10 or 9 chromium silicon tool steel, which has high toughness and strength and does not require frequent grinding of the tool.
4. The 220-350 models adopt the cross shear method and are used for shearing softer materials
